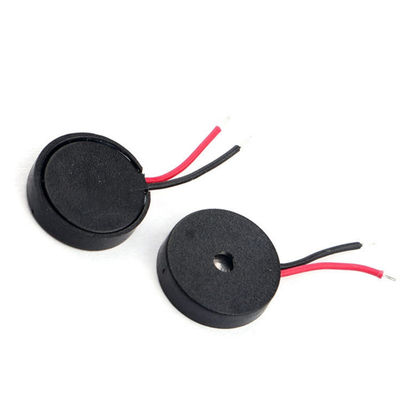

Factory hot selling plastic piezo buzzer mini piezo buzzer passive type piezo buzzer

100.0 Pieces
MOQ
Factory hot selling plastic piezo buzzer mini piezo buzzer passive type piezo buzzer
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: IST-PT10A
Type: Buzzer
D/C: IST-PT10A
Material: Plastic
Color: Black
Voltage - Rated: 10V
Frequency: 3200±500HZ
Technology: Piezo
Operating Mode: Single Tone
Operating Temperature: -20°C ~ 60°C
Size / Dimension: 10.0 * 3.2mm
Part Number: IST-PT10A
Dimension: 10.0 * 3.2mm
Rated Voltage: 10Vp-p
Resonant Frequency: 3200±500HZ
SPL: ≥80dB@10cm
Current: ≤5mA
Operating Voltage: 1~30Vp-p
Información básica
Model Number: IST-PT10A
Pago y Envío Términos
Packaging Details: Export standard packing
Supply Ability: 10000 Piece/Pieces per Day
Descripción de producto
Product Description
Item
Unit
Value
Rated Voltage（Square Wave）
Vp-p
10
Operating Voltage
Vp-p
1-30
Rated Current（Max）
mA
5
Min Sound Output at 10cm
dB
80
Resonant Frequency
Hz
3200
Capacitance at 120Hz
pF
11000±30%
Operating Temperature
℃
-20~+60
Storage Temperature
℃
-30~+70
Weight
g
1
Housing Material
Black ABS
Lead Wire
UL1571 AWG32
Tone Nature
Single
